SPECIFICATIONS

Applicable Industries: Other, Crane, Excavator, Loader, Harvesting machine, Tractors

Brand Name: NoEnName_Null

CANbus: "2 channels of CAN2.0B Compatible with J1939 and CAN Open"

Ethernet: 1 channel of 10/100 Mbit/s,IEEE802.3

Frequency: Cortex A8 1GHz

Function keys: 10

Hign-concerned Chemical: NONE

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Origin: Mainland China

Place of Origin: Shanghai, China

Power consumption: Less than 800mA@24V

Programming platform: EVC/CoDeSys2.3

RAM: 256MB

Resolution: 480*640

Showroom Location: None

Type: Hand Tool Parts

USB: 1 channel of USB2.0

Video outgoing-inspection: Provided

Warranty: 1 Year

Products Description

Mobile Machinery display controller, Vehicle virtual instrument, Multifunctional vehicle computer,CAN bus intelligent display controller. All key ICONS can be customized, if there is no special request, the standard products will be shipped.

Dimensions

Product Paramenters

Protection level	IP65
Backlight	-20℃ ~70℃
Storage temperature	-30℃ ~70℃
Mounting type	Bracket installation
Shell material	Engineering plastics
Backlight	200cd/m²
Shell material	Engineering plastics
Dimensions(mm)	212*142*49
I/O ports	2 channels of 0.5V  2 channels of 4 to 20mA  4 channels of DIH  3 channels of DIL  10 channels of DOH  1 channel of 5V reference supply(20mA)
Power consumption	Less than 800mA@24V
Operating system	WinCE
Programming platform	EVC/CoDeSys2.3
CANbus	2 channels of CAN2.0B
Ethernet	1 channel of 10/100 Mbit/s,IEEE802.3
USB	1 channel of USB2.0

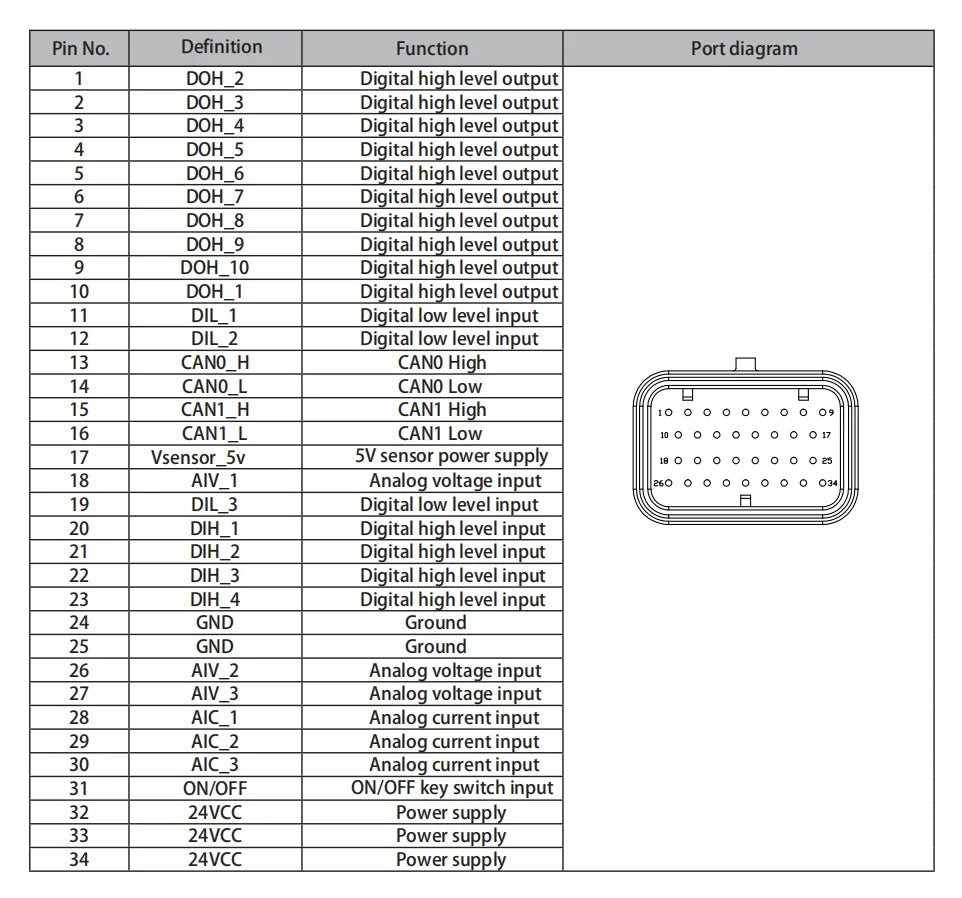

Port Definition
